Power Saver® 4 – High Speed Inverter Duty

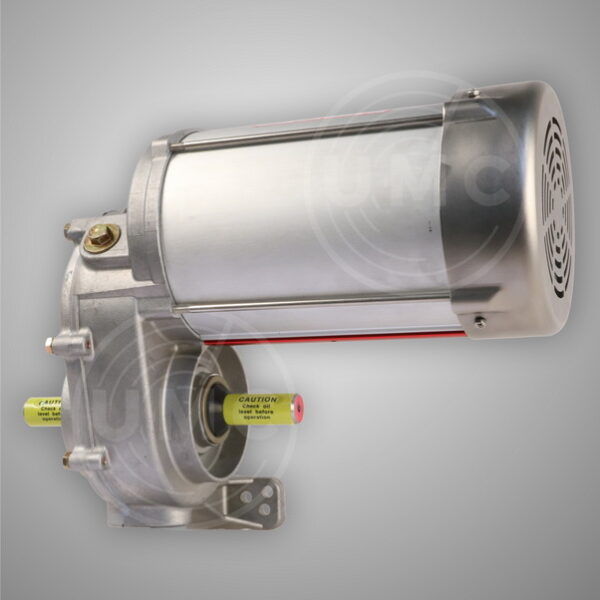

Power Saver® 4 – High Speed Inverter Duty - Image 2

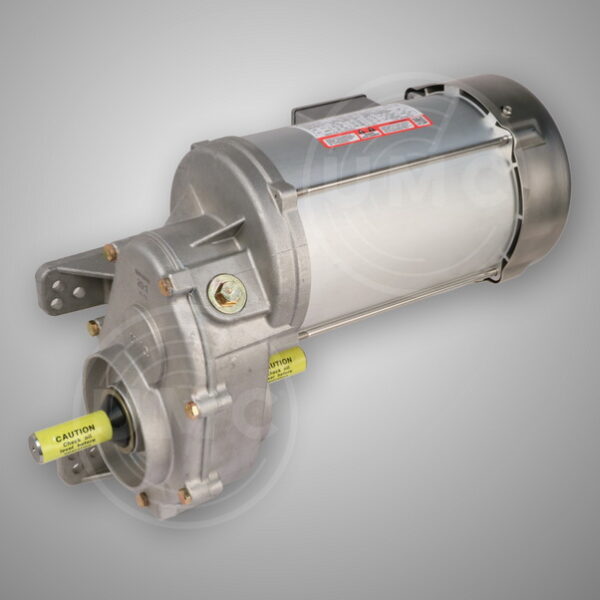

Power Saver® 4 – High Speed Inverter Duty - Image 3

Designed for high-speed constant move mechanized irrigation

Power Saver® 4 – High Speed Inverter Duty

UMC’s High Speed Inverter Duty Power Saver 4 center drives were designed to enhance the capabilities of electric-powered mechanized irrigation systems. When used with a variable speed drive system, these center drives enable a machine to travel across the widest range of speeds in the industry, enabling low speed irrigation and high-speed irrigation, chemigation and data collection.

These center drives were designed with the future of center pivot irrigation in mind. With their advanced features and wide speed range, these units offer unrivaled performance.
Find a distributor

Features and Benefits

  • TEFC Inverter Duty Motor – CSA & CE certified
  • Available ratios: 50:1, 40:1, 30:1, 25:1 & 20:1
  • Last tower top speed range: 40 – 100ft/min with 38″ tires & 50:1 gearboxes
  • Fan cooled motor with aluminum stator can for enhanced heat dissipation
  • Stainless steel fan shroud and stator bolts for enhanced corrosion resistance
  • Class H wire and class F insulation
  • IP 45 rated
  • Cartridge output seals eliminate shaft grooving & reduce oil leaks
  • 95% efficient helical gear reduction
  • Heat treated forged steel gears result in less wear and quieter operation
  • Multi-bolt mount pattern fits most pivots
  • Self-leveling oil fill plug for easier maintenance
  • Integrated crop guard to receive coupler shields & protect oil seals from crop wrapping & debris
  • Seal savers on output to protect oil seals
  • Motor drain holes protected by UMC’s exclusive Spray Guard for superior spray protection
UMC® manufactures the widest range of center drives in the industry. The UMC® Power Saver® center drive is available with many different gear ratios, output speeds and motor types. Rather than a ‘one size fits all’ approach, we provide solutions designed for specific applications. For assistance in selecting the right center drive for your needs, please contact us today!

Resources

Power Saver® 4 – High Speed Inverter Duty Specifications – English

Part Number

Output RPM

06169-111H

6 / 113 RPM

06169-111K

7 / 170 RPM

06169-111C

9 / 224 RPM

06169-111F

12 / 182 RPM

06169-111M

14 / 343 RPM
